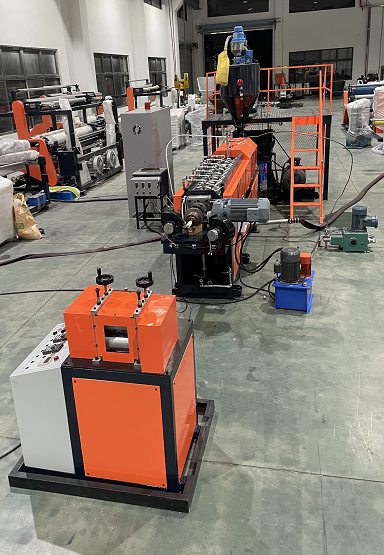

Máy đùn xốp bộc ổi/xốp hoa quả fruit net extrusion machine

I、Technical Parameters:

1. Screw Φ75mm, with the material of 38 CRMOALA, alloy steel, hardness   treatment, surface with nitride treatment. The angle of the screw get double hardness treatment. more hard and more durable.

Rotation speed: 0-48rpm .                                                   1 set

2. Reduction gear box: 200                                                      1 set

3. Main motor:    30KW/4/380V  SIEMENS MOTOR               1 set

4. Main inverter: 30KW/4/380V  SINEE inverter                      1 set

5. Intelligent temperature controlling with touch screen           1 set

6. Solid state relay, without touch spark                                    1 set

7.  Water cooling system manually or automatically                  1 set

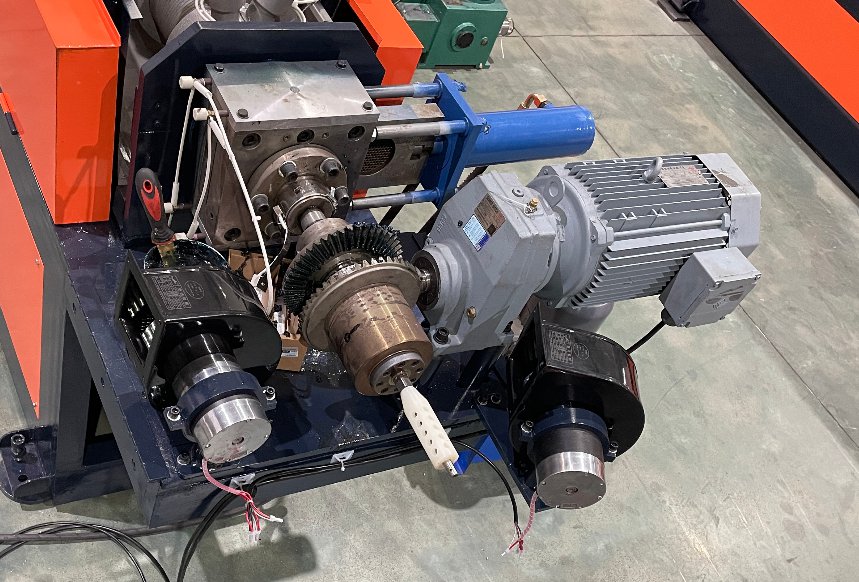

8. Die assembly                                                                         1 set

9. Die lip                                                                                    2 sets

10. Auto-cutting machine                                                          1 set

11. Auto-cutting machine with lock function program               1 set

II、Characters of the products:

Capacity: 25-40kg/hr

Density of the products: 18-35kg/m3

III、Parts list:

Main Body

Main Body frame, stainless steel flume, reduction gear box.

1. Φ75mm screw and barrel                                                1set

2. Auto filter ex-changer                                                     1set

4.   Die assembly                                                                  1set

5.   Die lip                                                                              2sets

      (With plastic shaping drum inside)

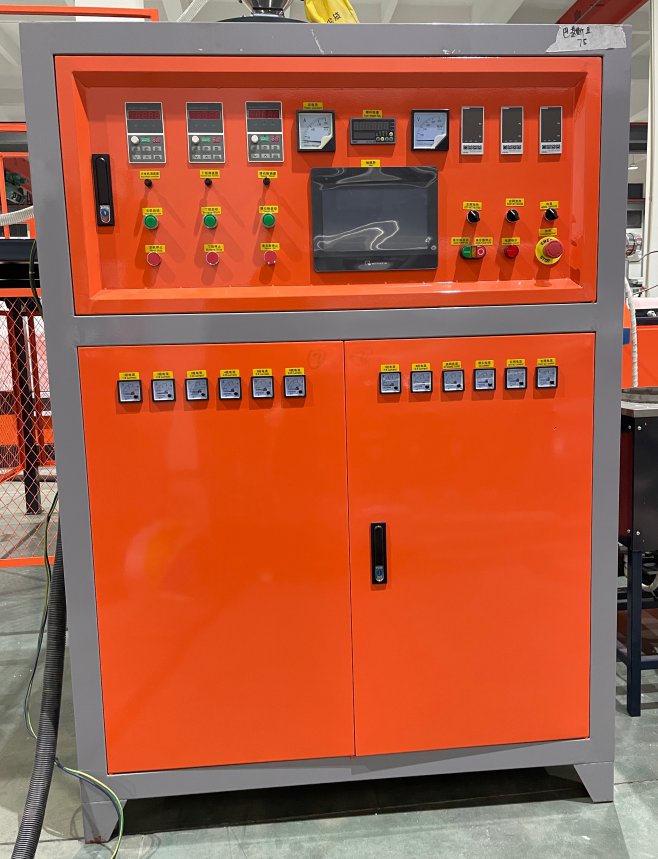

6.   Electrical control cabinet and the computer controlled

        (Will use new model cabinet, add customer name on it.)

7.Automatic resin-lack alarm device                                 1set

 8.Plat Form for protection                                                1set

 9.100KG BLENDER  (Stainless steel model)                 1set

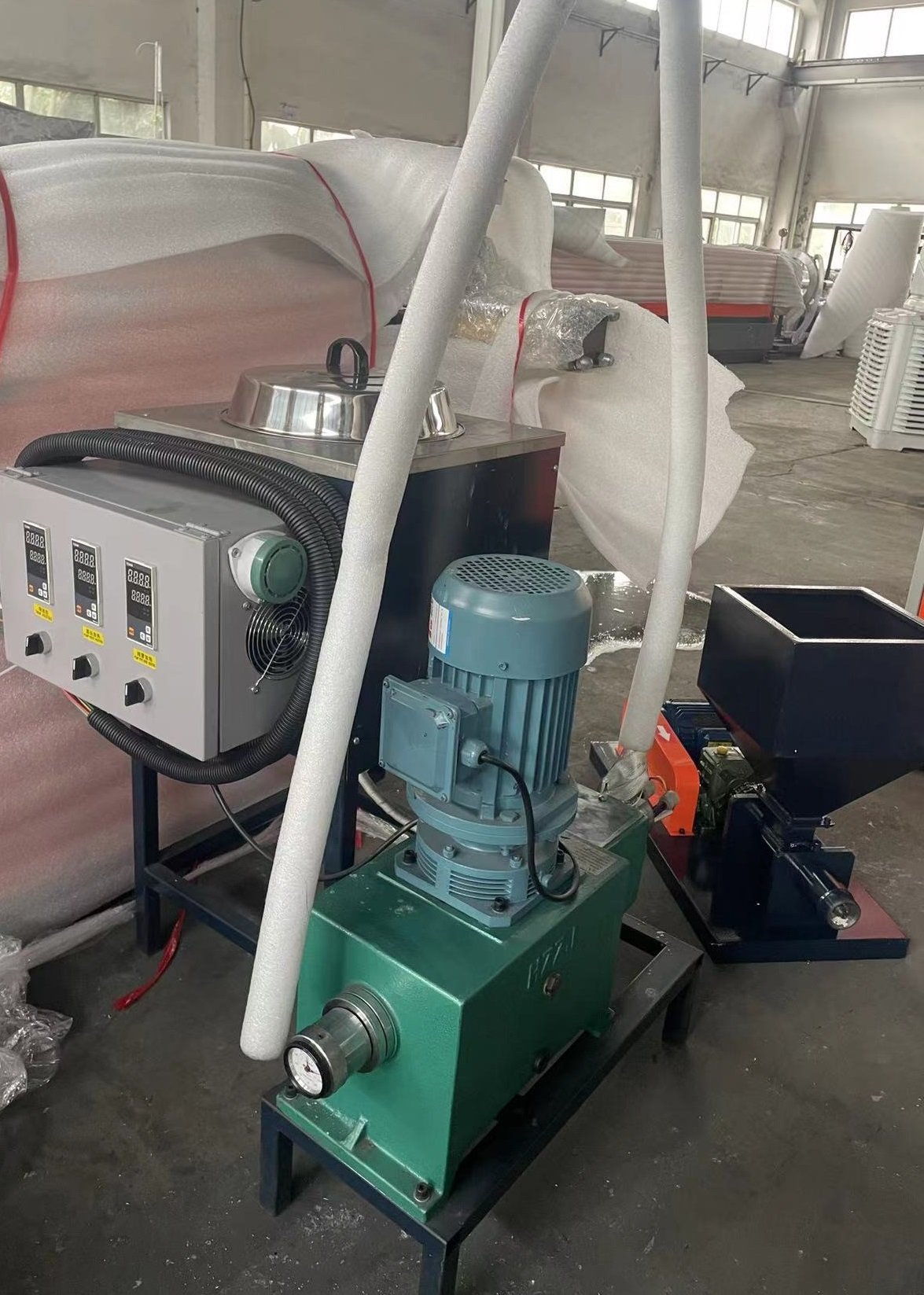

10. Butane pump 25L/H                                                    1set

(Add one base, let it more higher)

Assembled the alarm system with the cabinet

11. Gas- water separator                                                 1set

12. Monoglycerides pump 3.6L/H                                    1set

  (with cover)

13. Melting tank                                                               1set

14.Talcum Power machine                                              1set

15. Auto-cutting machine                                                 1set

16. Material Box                                                              1set

 17.AIR COOLING Additive

IV、Spare parts

1.  Butane pump spare item                                               1set

2.  Monoglycerides spare item                                           1set

3.  Solid state relay                                                             2pcs

4.  Die heating ring                                                              2pcs

5.   Cast aluminum heating ring                                          1set

6.  Stainless steel heating ring                                            1set

7.  Monoglycerides heating belt                                          1set

8.  Thermocouple                                                                3pcs

9. Pipe spanner                                                                   1pc

10. Stainless steel connector for the butane pipe               3pcs

11.  Tool box                                                                       1pc

12.  Scissors                                                                       1pc

13. Monkey wrench                                                            1pc

14.  Screw driver + and -                                                    1pc each

15.  Inner hexagonal wrench                                             1set

Some product for reference
